Abhinav Overseas: Flanges Supplier & Stockist in India
Abhinav Overseas is one of the largest Stainless Steel Flanges Manufacturers & suppliers in India. We produce and manufacture one of the top-quality ANSI B16.5 Stainless Steel Flange in different sizes and grades at our one of its kind manufacturing facility. Sanjay Metal India is a well-known name around the globe and our quality ASME SA182 Stainless Steel Slip On Flanges are in huge demand internationally. We are achieving new heights with the help of our in-house capabilities to produce one of the best quality Stainless Steel High Hub Blind Flanges. We also export SS Slip-on Flanges, Stainless Steel Blind Flanges, SS Socket Weld Flanges, Stainless Steel Threaded Flanges, Stainless Steel Weld Neck Flanges, and more.
We offer a comprehensive range of flanges manufactured according to international standards such as ASTM, ASME, DIN, and JIS. Each flange undergoes rigorous quality testing to ensure dimensional accuracy, material integrity, and performance reliability.
Our manufacturing capabilities include both forged and plate flanges with various facing types including raised face, flat face, and ring-type joint. We maintain extensive inventory to support quick delivery times and competitive pricing.
Abhinav Overseas' technical team provides expert guidance in selecting the appropriate flange type, material grade, and specifications based on your specific application requirements, pressure ratings, and operating conditions.
Key Benefits
- Excellent corrosion resistance due to high chromium content
- High durability and long service life
- Provides flexibility in connecting components that need to be easily separated
- Resistant to many organic and inorganic compounds
- Excellent performance in high-temperature applications
Flanges Types

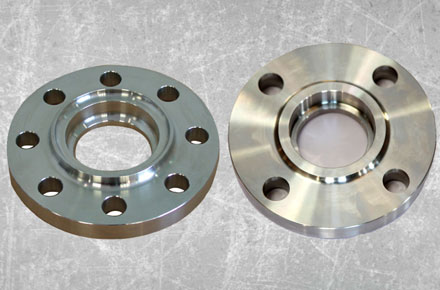

Slip-On Flange
Slides over the pipe and is welded both inside and outside for secure connection.

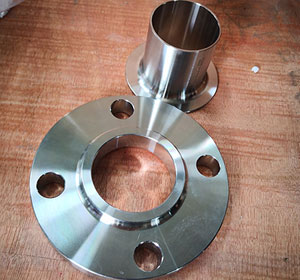

Lap Joint Flange
Used with stub ends to allow for rotation and easy alignment during installation.

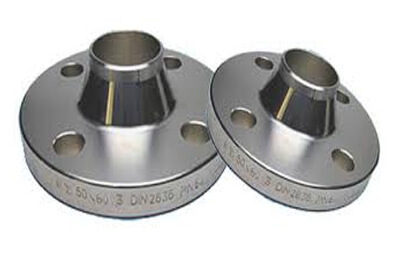

Weld Neck Flange
Features a long tapered hub that provides reinforcement and reduces stress concentration.

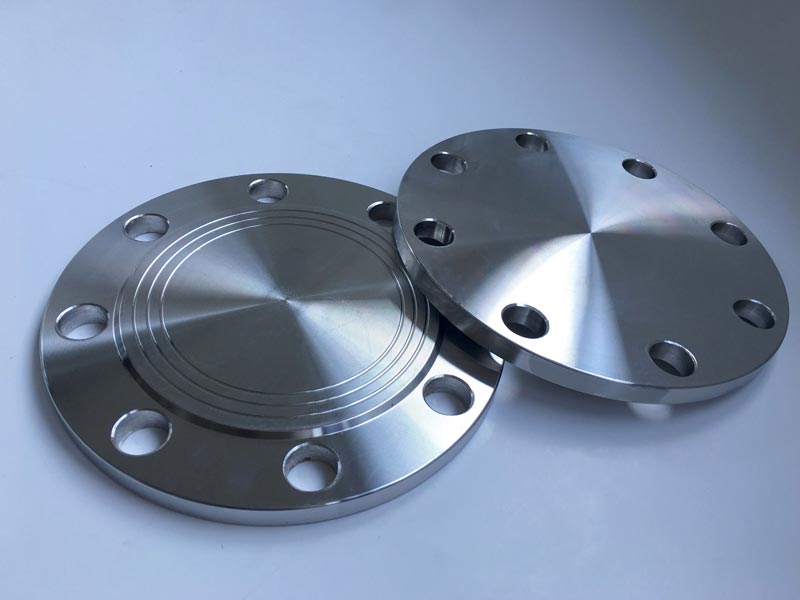

Blind Flange
Solid disk used to seal the end of a piping system or vessel opening.

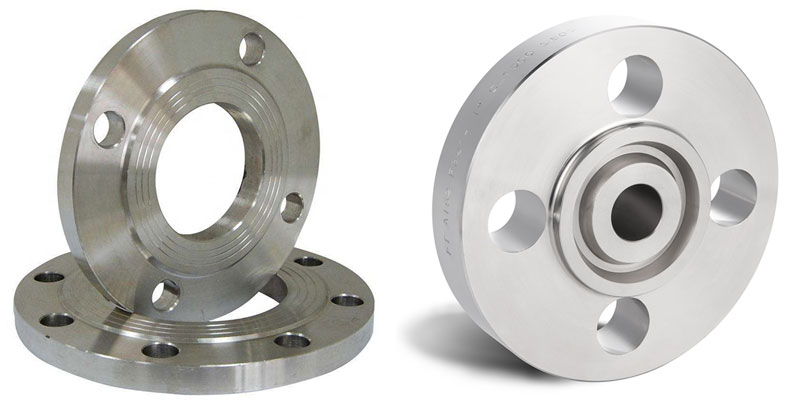

Ring Joint Face Flange
Designed with a groove to accommodate a metal ring gasket for high-pressure applications.

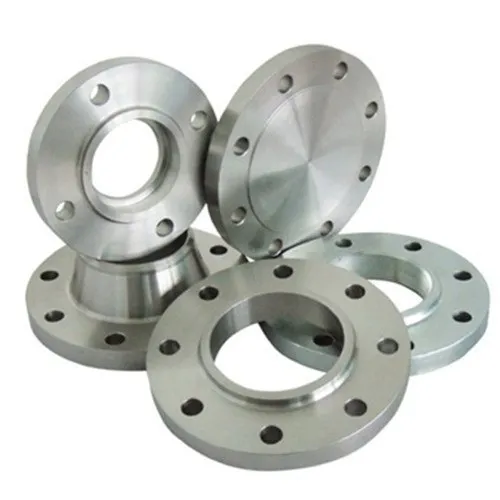

Socket Weld Flange
Features a socket that accepts the pipe and is then welded for a strong connection.

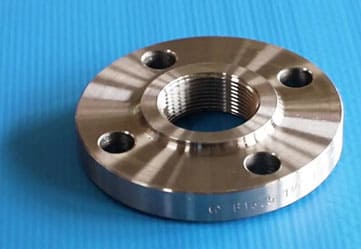

Threaded Flange
Contains internal threads that mate with external pipe threads for quick assembly.

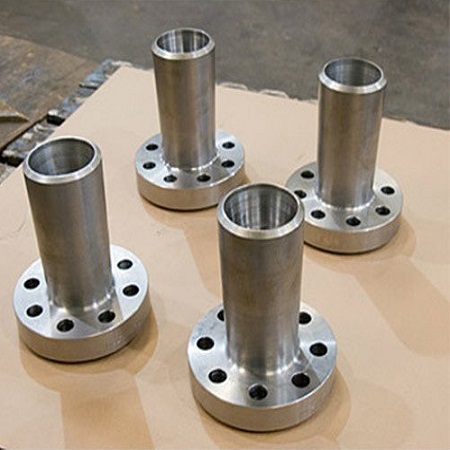

Long Weld Neck Flange
Extended version of weld neck flange for special applications requiring additional length.

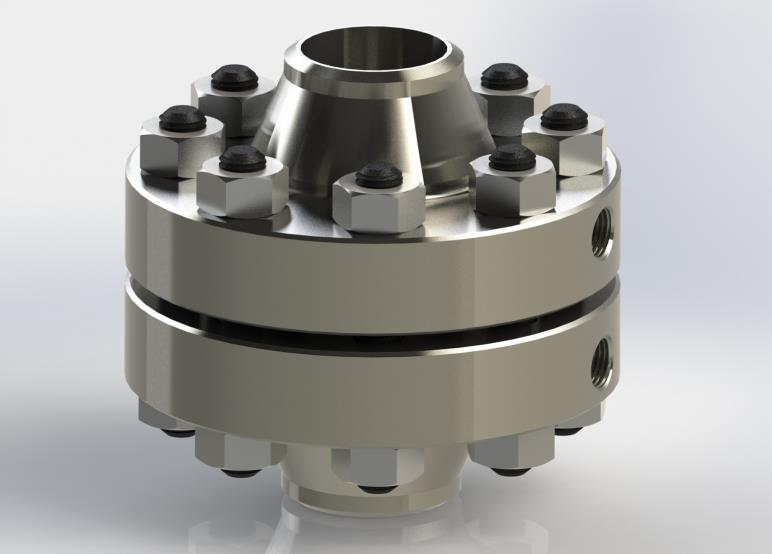

Orifice Flange
Specially designed to hold an orifice plate for flow measurement in piping systems.
Flanges Categories
Hastelloy Flanges
Nickel Alloy Flanges
Monel Flanges
Cupro Nickel Flanges
Duplex Steel Flanges
Technical Specifications
| Specification | Details |
|---|---|
Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
Flanges Types | Slip-on Flange, Lap Joint Flange, Weld Neck Flange, Blind Flange, Ring Joint Face (RTJ) Flange, Socketweld Flange, Threaded Flange, Long Welding Neck, Orifice Flange |
Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75 |
Standards | ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 |
Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
Inspection, Test Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Specials | Sizes and Specifications other than above can be manufactured on request |
Applications
Products
Main Categories
Material Types
- Stainless Steel
- Inconel
- Incoloy
- Hastelloy
- Nickel Alloy
- Monel
- Titanium
- Cupro Nickel
Need Flanges?
Contact our experts today to discuss your specific requirements and get a customized quote for your project.
